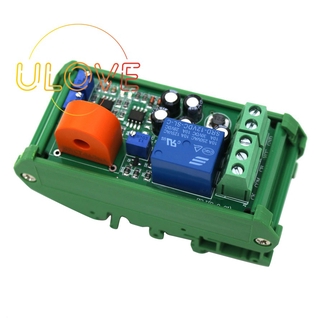

Mô-Đun Cảm Biến Dòng Điện Ac 0-5a

Giới thiệu Mô-Đun Cảm Biến Dòng Điện Ac 0-5a

Note: Module can only use DC24V power supply. The utility model has the function of anti back protection,The power indicator light is green and yellow.
Customers need to use analog signals, they can own from the B point on the module out. The corresponding relationship is 0-5V linear 0-5A current.
Because the circuit characteristics, setting the threshold value, the protection value is slightly lower than the actual value, set the current threshold for example: 2A.
Then according to the voltage and current of the corresponding table, the threshold voltage corresponding to 2V, but the reason for the circuit characteristics, the protection value should be located around 1.97V. VR2, VR3 potentiometer for factory commissioning, customers can not be adjusted. Only when the module is working for a long time after a large error can be adjusted by adjusting the two potentiometers.
The module detects the magnitude of the current in the AC circuit, preset the threshold, and when the current reaches the threshold, the relay operates on the module. It is suitable for over-current protection and alarm of all kinds of equipments.
Color: green
Material: ABS + electronic components
Technical parameter:
Voltage corresponding to current: 0-5V voltage corresponds to 0-5A current
Working Voltage DC24V ± 0.5V
Working
current
Detection status ≤25mA
Alarm status ≤90mA
Detection range AC0-5A
Detection accuracy ± 1% F * S
Output
mode
Relay output
Analog output (See below)
Alarm mode
LED judgment
Red- LED ON Overcurrent
Red- LED OFF normal
Installation method C45 standard 35mm rail mounting
The correction method is as follows:
1. Module power, in the case of no current detection, measuring the voltage of the B point of the module VR2, the voltage will be adjusted to 0V.
2. After the completion of the above steps, plus the current has been known to detect the VR3, such as 2A, measuring the voltage of the B point to the ground, the voltage will be adjusted to 2V by the potentiometer. Calibration complete.
For the frequent changes in the current, but also need to use the module on the end of the relay control of the customer, it is recommended in the relay output connected to AC contactor. To prevent frequen
Package Contents:
1* AC detection sensor module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
